AMY Synthesizer Details

Please see our interactive AMY tutorial for more tips on using AMY

Oscillators, voices, patches and synths

Here’s a diagram of how AMY manages oscillators, and synths. This is an example of a six polyphony Juno-6 synth. Each voice represents one unit of polyphony, and the 5 oscillators that are needed to make up the voice. The synth manages 6 voices:

AMY’s lowest level of control is the oscillator - a single waveform that you can define a number of parameters for, apply filters, frequency, pan, etc. By default AMY ships with support for 180 oscillators running at once. (You can increase this with amy_config.)

We then provide voices, to make it easier to configure and use groups of oscillators in coordination. For example, each Juno-6 note is generated by a single voice made from 5 oscillators.

You then manage a set of voices using a synth, which takes care of allocating available voices to successive notes. For example a Juno-6 synth can play 6 notes of a patch at once. The synth in AMY allocates 6 voices, each with 5 osc, and handles note stealing and parameter changes.

You configure the voices in a synth by using a patch, which is a number referring to a stored list of AMY commands that set up one or more oscillators. You can assign any patch to any synth, or set up multiple synths to have the same patch, and AMY will allocate the oscillators it needs under the hood.

(Note that when you use voices/synths, you’ll need to include the synth arg when addressing oscillators, and AMY will automatically route your command to the relevant oscillators in each voice of the synth’s set – there’s no other way to tell which oscillators are being used by which voices.)

To play a patch – for instance the built-in patches emulating Juno and DX7 synthesizers and a piano – you create a synth configured with that patch, then send note events, or parameter moidifications, to the synth. We ship patches 0-127 for Juno, 128-255 for DX7, 256 for our built-in piano, and – on devices with the Gamma9001 drum banks (Tulip, AMYboard, AMY on the web, the CPython amy module) – seven GM drum kits at patches 384-390 (see Drum kits). For example, a multitimbral Juno/DX7 synth can be set up like this:

amy.send(synth=1, num_voices=4, patch=1)     # 4 voices of Juno patch #1 on synth 1
amy.send(synth=2, num_voices=4, patch=129)   # 4 voices of DX7 patch #2 on synth 2
amy.send(synth=1, note=60, vel=1)            # Play note 60 on one of the Juno voices
amy.send(synth=1, osc=0, filter_freq=8000)   # Open up the filter on the Juno voices
                                             # (Juno patches implement the VCF on osc 0)

The code in amy/headers.py generates these patches and bakes them into AMY so they’re ready for playback on any device. You can add your own patches at compile time by storing alternative wire-protocol setup strings in patches.h, or by making user patches at runtime (see User patches below).

Synths

A common use-case is to want a pool of voices which are allocated to a series of notes as-needed. This is accomplished with synths. You associate a synth number with a set of voices by providing the patch number when initializing the synth; the synth arg becomes a smart alias for passing note events to one of its voices (or configuration changes to all of them), e.g.

amy.send(synth=0, num_voices=3, patch=1)     # 3-voice Juno patch #1 on synth 0
# Play three notes simultaneously
amy.send(synth=0, note=60, vel=1)
amy.send(synth=0, note=64, vel=1)
amy.send(synth=0, note=67, vel=1)
# To play a 4th note, the synth 'steals' the oldest voice, i.e. the one that was playing note 60
amy.send(synth=0, note=70, vel=1)
# We can send note-offs to individual notes
amy.send(synth=0, note=70, vel=0)
# .. or we can send note-offs to all the currently-active synth voices by sending a note-off with no note.
amy.send(synth=0, vel=0)
# Once a synth has been initialized and associated with a set of voices, you can use it alone with patch
amy.send(synth=0, patch=13)  # Load a different Juno patch, it will remain 4-voice.
# You can also use `patch_string` to directly define a patch using a wire-command string.
amy.send(synth=0, num_voices=3, patch_string=amy.message(wave=amy.TRIANGLE, bp0='0,1,1000,0,1000,0'))
# You can release all the voices/oscs being used by a synth by setting its num_voices to zero.
amy.send(synth=0, num_voices=0)
# Each synth has an overall level (`synth_level`, wire code `iV`), default 1.0,
# applied to all of its oscs' audio output at render time. It's a master volume
# for the synth, independent of any osc amp settings (and the natural way to
# scale a drum-kit synth, whose per-drum oscs each carry their own amp):
amy.send(synth=0, synth_level=0.5)
# Patches 258 and 384-390 are General MIDI drum synth kits (see the Drum kits section).
# They include special flags that will translate GM note events into PCM presets.
amy.send(synth=10, patch=384)
amy.send(synth=10, note=38, vel=1)  # acoustic snare (GM note numbers)
amy.send(synth=10, patch=389)       # hot-swap the synth to the 80s Power Kit

Note 1: Although note can take on real values – e.g. note=60.5 for 50 cents above C4 – the voice management tracks voices by integer note numbers (i.e., midi notes) so it rounds note values to the nearest integer when deciding which note-off goes with which note-on. Note also that note-on events that also set the preset parameter (e.g. to select PCM samples) will fold the patch number into the note integer used as the key for note-on, note-off matching.

Note 2: note-on events to synths (or their component voices) have a specific behavior: amy.send(synth=0, osc=0, note=48, vel=1) sends a note-on to osc 0 within the synth voice; for a typical patch, this will trigger all the sounding oscs if they are chained via chained_osc. However, amy.send(synth=0, note=48, vel=1) (no osc parameter) will send note-ons to all the oscs in that voice, not just osc 0. When all the sounding oscs were already chained together, this has the same effect (since the oscs already received the note-on). But if your voice contains multiple, independent oscs, they will all be triggered. For instance,

amy.reset()
amy.send(synth=1, num_voices=2, oscs_per_voice=2)
amy.send(synth=1, osc=0, wave=amy.SINE, freq=440)  # These are all defaults, so this line is not needed.
amy.send(synth=1, osc=1, wave=amy.SINE, freq=660)  # Non-default freq
amy.send(synth=1, note=60, vel=1)

.. will sound two sine tones a fifth apart, even though the two oscs are not chained and we only issued a single note-one.

Changing a synth’s voice count

You can change num_voices on a synth that is already running, and the synth keeps the sound it has now – not the patch it started from:

amy.send(synth=0, num_voices=1, patch=1)
amy.send(synth=0, osc=0, filter_freq=2000, resonance=4)  # tweak the live synth
amy.send(synth=0, num_voices=4)                          # 4 voices of the TWEAKED sound

Changing the voice count rebuilds all of the synth’s voices, so AMY copies one of the existing voices into the new ones; everything you configured after the patch was loaded comes along, and the patch is not reloaded. Note and velocity aren’t part of an osc’s configuration, so resizing a synth while it’s playing copies the sound, not the notes. This works for a synth that never had a patch at all – one built with oscs_per_voice or a patch_string and then configured osc by osc resizes like any other.

To load a different sound, name it: amy.send(synth=0, patch=13), or a fresh patch_string, replaces the voices’ configuration as before.

A synth built from a patch_string carries no patch number (the one AMY assigns internally is released as soon as the patch is loaded, so it never occupies a user patch slot). Anything that asks such a synth for its patch number gets “none”: in particular, a bare MIDI program change on that channel selects from bank 0 (the Juno patches) instead of inferring a bank from the current patch. Synths sitting on a numbered patch – built-in, or one of your own at 1024+ – infer their bank as before.

User patches

You can create your own patches at runtime and use them for synths with a sequence of amy.send(patch=PATCH_NUMBER, <configuration commands>) where PATCH_NUMBER is a number in the range 1024-1055. Without patch=PATCH_NUMBER, this command would directly configure an oscillator, but when patch is present, it instead appends the command to the stored patch configuration. You can accumulate any number of commands into a single patch; you reset the patch with amy.send(patch=PATCH_NUMBER, reset=amy.RESET_PATCH).

So you can do:

>>> import amy; amy.live()  # Not needed on Tulip.
>>> amy.send(patch=1024, reset=amy.RESET_PATCH)
>>> amy.send(patch=1024, osc=1, wave=amy.SINE, freq=0.25, phase=0.5, amp=0.5)  # "Pitch sigh" modulator.
>>> amy.send(patch=1024, osc=0, wave=amy.SINE, freq='440,1,0,0,0,1', bp0='0,1,500,0,0,0', mod_source=1)  # decaying sine modulated by sigh.
>>> amy.send(synth=0, num_voices=1, patch=1024)
>>> amy.send(synth=0, vel=2, note=50)

AMY infers the number of oscs needed for the patch from the cumulated commands. If you store a new patch over an old one, that old memory is freed and re-allocated. (We rely on malloc for all of this.)

Loading DX7 sysex (.SYX) files as user patches

amy.fm converts DX7 patches straight from sysex data into a user patch, on any platform AMY’s Python runs on (including Tulip and AMYboard). Hand fm.load_syx() the bytes of a .SYX file — the common 32-voice bank sysex, a single-voice sysex, or raw packed (128-byte) / unpacked (155-byte) voice data — or a base64 string of any of those, which is handy for pasting a patch into a self-contained script or AMYboard sketch:

>>> from amy import fm
>>> syx = open('ROM1A.SYX', 'rb').read()
>>> fm.syx_names(syx)                             # list the 32 voice names in the bank
['BRASS   1 ', 'BRASS   2 ', ...]
>>> fm.load_syx(syx, voice=10, patch=1024)        # store voice 10 as user patch 1024
'E.PIANO 1 '
>>> amy.send(synth=1, num_voices=6, patch=1024)   # and play it
>>> amy.send(synth=1, note=60, vel=1)

You can do something very similar directly into a synth, provided it has been initialized with the correct number of oscs. So we could get the same final synth as above with these commands:

>>> amy.send(synth=0, num_voices=1, oscs_per_voice=2)  # We will be using 2 oscs per voice.
>>> amy.send(synth=0, osc=1, wave=amy.SINE, freq=0.25, phase=0.5, amp=0.5)  # "Pitch sigh" modulator.
>>> amy.send(synth=0, osc=0, wave=amy.SINE, freq='440,1,0,0,0,1', bp0='0,1,500,0,0,0', mod_source=1)  # decaying sine modulated by sigh.
>>> # Ready to play!
>>> amy.send(synth=0, vel=2, note=50)

Control Coefficients

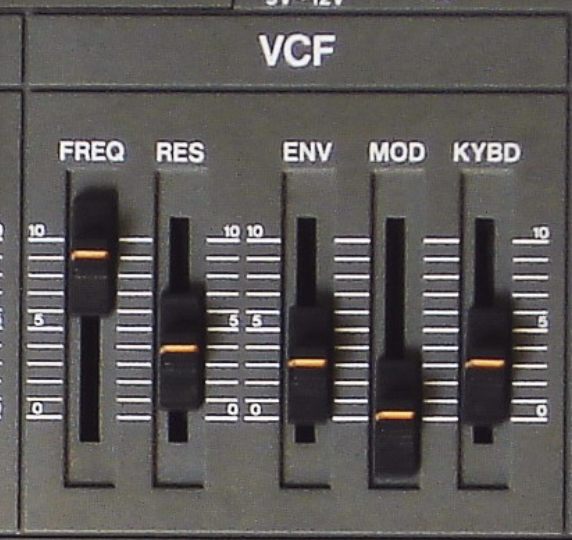

On many synths (like this SH-101), you’ll see a row of sliders that impact which control signal(s) can modify a parameter. Here the SH-101 lets you control the VCF (filter) by a constant frequency (FREQ), ADSR envelope (ENV), LFO or mod wheel (MOD), and keyboard velocity (KYBD). These slider values impact the ratio of each source’s strength in the output filter frequency.

We use this style of control in AMY, called CtrlCoef or Control Coefficients. They are a list of up to 10 floats that are multiplied by a range of control signals, then summed up to give the final result (in this case, the filter frequency).

The full set of parameters accepting ControlCoefficients is amp, freq, filter_freq, duty, and pan. The control signals are:

The set 50,0,0,0,1 means that we have a base frequency of 50 Hz, we ignore the note frequency and velocity and EG0, but we also add the output of EG1. Any coefficients that you do not specify, for instance by providing fewer than 10 values, are not modified. You can also use empty strings to skip positional values, so filter_freq=',,,,1' couples EG1 to the filter frequency without changing any of the other coefficients. (Note that when we passed freq=220 in the first example, that was interpreted setting the const coefficient to 220, but leaving all the remaining coefficients untouched.)

Because entering lists of commas is error prone – and because a positional list makes you remember oddities like mod1 being coefficient 9 rather than 6 – you should prefer to specify control coefficients as Python dicts consisting of values with keys from the list above, i.e. filter_freq={'const': 50, 'eg1': 1} is equivalent to filter_freq='50,,,,1'.

You can use the same EG to control several things at once. For example, we could include freq=',,,,0.333', which says to modify the note frequency from the same EG1 as is controlling the filter frequency, but scaled down by 1/3rd so the initial decay is over 1 octave, not 3. Give it a go!

The note frequency is scaled relative to a zero-point of middle A (MIDI note 69, 440 Hz), so to make the oscillator faithfully track the note parameter to the note-on event, you would use something like freq='440,1'. Setting it to freq='880,1' would make the oscillator always be one octave higher than the note MIDI number. Setting freq='440,0.5' would make the oscillator track the note parameter at half an octave per unit, so while note=69 would still give middle A, note=81 (A5) would make the oscillator run at D#5, and note=93 (A6) would be required to get A5 from the oscillator.

The default set of ControlCoefficients for freq is {'const': 440, 'note': 1, 'bend': 1}, i.e. a base of middle A, tracking the MIDI note, plus pitch bend (at unit-per-octave). Because 440 is such an important value, as a special case, setting the first freq value to zero is magically rewritten as 440, so freq={'const': 0, 'note': 1, 'bend': 1} also yields the default behavior. amp also has a set of defaults: amp={'const': 1, 'vel': 1, 'eg0': 1}, i.e. an overall gain of 1, scaled by note-on velocity and by EG0 (which just tracks the note-on status if it has not been set up). amp is a little special in two ways. First, its const coefficient acts as an overall gain on the oscillator rather than an additive base value: 1 means full amplitude, and 0 means the oscillator is silenced entirely (it is skipped during rendering). So amp={'const': 0, ...} mutes the oscillator — if you just want velocity + EG0 control, leave const alone (it defaults to 1). Second, the nonzero components are combined in the log (dB) domain instead of being summed linearly: each control input’s 0..1 range is mapped so that 1 is full amplitude and 0 is -60dB, the coefficient-weighted values are summed in that domain, and the result is converted back to a linear amplitude, with anything at or below -60dB floored to silence. (The mod0/mod1 inputs are applied directly in the log domain, so an LFO routed to amp gives exponential tremolo around the current level.) These defaults are set up in src/amy.c:reset_osc_params(), and the combination happens in amp_combine_controls().

We also have LFOs, which are implemented as one oscillator modulating another (instead of sending its waveform to the output). You set up the low-frequency oscillator, then have it control a parameter of another audible oscillator. Let’s make the classic 8-bit duty cycle pulse wave modulation, a favorite:

amy.reset()  # Clear the state.
amy.send(osc=1, wave=amy.SINE, freq=0.5, amp=1)   # We set the amp but not the vel, so it doesn't sound.
amy.send(osc=0, wave=amy.PULSE, duty={'const': 0.5, 'mod0': 0.4}, mod_source=1)
amy.send(osc=0, note=60, vel=0.5)

You see we first set up the modulation oscillator (a sine wave at 0.5Hz, with amplitude of 1). We do not send it a velocity, because that would make it start sending a 0.5 Hz sinewave to the audio output; we want its output only to be used internally. Then we set up the oscillator to be modulated, a pulse wave with a modulation source of oscillator 1 and the duty ControlCoefficients set to have a constant value of 0.5 plus 0.4 times the modulating input (i.e., the depth of the pulse width modulation, where 0.4 modulates between 0.1 and 0.9, almost the maximum depth). The initial duty cycle will start at 0.5 and be offset by the state of oscillator 1 every tick, to make that classic thick saw line from the C64 et al. The modulation will re-trigger every note on. Just like with envelope generators, each modulation oscillator has a ‘slot’ in the ControlCoefficients - mod0 and mod1 - so it can modulate PWM duty cycle, amplitude, frequency, filter frequency, or pan! And if you want to modulate more than one thing, like frequency and duty, just specify multiple ControlCoefficients:

amy.send(osc=1, wave=amy.TRIANGLE, freq=5, amp=1)
amy.send(osc=0, wave=amy.PULSE, duty={'const': 0.5, 'mod0': 0.25}, freq={'mod0': 0.5}, mod_source=1)
amy.send(osc=0, note=60, vel=0.5)

We have some helpful patches in amy.examples, if you want to use them, or add to them. To make that filter bass, just do amy.send(synth=0, num_voices=4, patch=amy.examples.filter_bass()) and then amy.send(synth=0,vel=1,note=50) to hear it.

AMY’s sequencer and ticks

AMY provides a musical sequencer, on ticks, for both one-off future scheduling and repeating events. There’s no millisecond-based scheduling primitive – everything scheduled ahead of time is expressed in ticks, at the current tempo.

The sequencer

AMY starts a musical sequencer that works on ticks from startup. You can reset the ticks to 0 with an amy.send(reset=amy.RESET_TIMEBASE). Note this will happen immediately, ignoring any pending ticks=.

Ticks run at 48 PPQ at the set tempo. The tempo defaults to 108 BPM. This means there are 108 quarter notes a minute, and 48 * 108 = 5184 ticks a minute, 86 ticks a second. The tempo can be changed with amy.send(tempo=120).

You can schedule an event with amy.send(..., ticks="tick,period,tag"). All three values are optional past tick:

amy.send(osc=0, wave=amy.SAW_UP, eg0="0,1,500,0,500,0")  # Pluck tone
amy.send(osc=0, note=50, vel=1, ticks=amy.sequencer_ticks() + 96)   # one-off: fires once, ~1s from now
amy.send(osc=0, note=38, vel=1, ticks="0,24,7")    # repeating, cancelable via tag 7
amy.send(osc=0, ticks="0,0,7")                     # cancel tag 7
amy.send(osc=0, note=72, vel=1, ticks="0,24")      # repeating, not individually cancelable
amy.reset()   # Stop everything

tick can be an absolute or offset tick number. If period is omitted or 0, tick is assumed to be absolute: once AMY reaches tick, the rest of your event plays once and the saved event is removed from memory. This is also how you schedule a plain one-off event in the future – give only tick (no period, no tag) and it behaves like the old millisecond time= parameter did, except the delay is in ticks, at the current tempo. If an absolute tick is already due or overdue when the event arrives, AMY plays it immediately rather than dropping it – so a scheduling callback that runs a little late (they all do) still sounds, just a fraction of a tick behind.

You can schedule repeating events (like a step sequencer or drum machine) with period, which is the length of the sequence in ticks. For example a period of 48 with tick equal to 0 will trigger once every quarter note. A period of 24 will happen twice every quarter note. A period of 96 will happen every two quarter notes. period can be any whole number to allow for complex rhythms.

For pattern sequencers like drum machines, you will also want to use tick alongside period. If both are given and period is nonzero, tick is assumed to be an offset on the period. For example, for a 16-step drum machine pattern running on eighth notes (PPQ/2), you would use a period of 16 * 24 = 384. The first slot of the drum machine would have a tick of 0, the 2nd would have a tick offset of 24, and so on.

tag is optional. If you give one, you can cancel that event later by sending ticks="0,0,tag" with the same tag. If you omitted tag when setting up the sequence (a 1- or 2-value ticks=), the event is still scheduled and still fires, but it isn’t addressable by any tag – there’s no way to cancel or replace it individually (only by something like amy.reset(), discarding all sequenced events), so only omit tag for events you don’t need to manage later.

If you are including AMY in a program, you can set the hook void (*amy_external_sequencer_hook)(uint32_t) to any function. This will be called at every tick with the current tick number as an argument.

Core oscillators

We support bandlimited saw, pulse/square and triangle waves, alongside sine and noise. Use the wave parameter: 0=SINE, PULSE, SAW_DOWN, SAW_UP, TRIANGLE, NOISE. Each oscillator can have a frequency (or set by midi note), amplitude and phase (set in 0-1.). You can also set duty for the pulse type. We also have a karplus-strong type (KS=6), plus WAVETABLE when compiled with AMY_WAVETABLE that plays back 16,384 sample long wavetable packs, such as those hosted on waveeditonline.com.

Oscillators will not become audible until a velocity over 0 is set for the oscillator. This is a “note on” and will trigger any modulators or envelope generators set for that oscillator. Setting velocity to 0 sets a note off, which will stop modulators and also finish the envelopes at their release pair. velocity also internally sets amplitude, but you can manually set amplitude after velocity starts a note on.

WAVETABLE

WAVETABLE reads from wavetable presets appended to tiny PCM data at build time (guarded by #if defined(AMY_WAVETABLE)).

LFOs & modulators

Any oscillator can modulate any other oscillator. For example, a LFO can be specified by setting oscillator 0 to 0.25Hz sine, with oscillator 1 being a 440Hz sine. Using the 6th parameter of ControlCoefficient lists, you can have oscillator 0 modulate frequency, amplitude, filter frequency, or pan of oscillator 1. You can also add targets together, for example amplitude+frequency. Set the mod_target and mod_source on the audible oscillator (in this case, oscillator 1.) The source mod oscillator will not be audible once it is referred to as a mod_source by another oscillator. The amplitude of the modulating oscillator indicates how strong the modulation is (aka “LFO depth.”)

Filters

We support lowpass, bandpass and hipass filters in AMY. You can set resonance and filter_freq per oscillator.

EQ & Volume

You can set a synth-wide volume (in practice, 0-10), or set the EQ of the entire synths’s output.

Envelope Generators

AMY allows you to set 2 Envelope Generators (EGs) per oscillator. You can see these as ADSR / envelopes (and they can perform the same task), but they are slightly more capable. Breakpoints are defined as pairs of time deltas (specified in milliseconds) and target value. You can specify up to 8 pairs, but the last pair you specify will always be seen as the “release” pair, which doesn’t trigger until note off. All preceding pairs have time deltas relative to the previous segment, so 100,1,100,0,0,0 goes up to 1 over 100 ms, then back down to zero over the next 100ms. The last “release” pair counts from ms from the note-off.

An EG can control amplitude, frequency, filter frequency, duty or pan of an oscillator via the 4th (EG0) and 5th (EG1) entries in the corresponding ControlCoefficients.

For example, to define a common ADSR curve where a sound sweeps up in volume from note on over 50ms, then has a 100ms decay stage to 50% of the volume, then is held until note off at which point it takes 250ms to trail off to 0, you’d set time to be 50ms and target to be 1.0, then 100ms with target .5, then a 250ms release with ratio 0. By default, amplitude is set up to be controlled by EG0. At every synthesizer tick, the given amplitude (default of 1.0) will be multiplied by the EG0 value. In AMY wire parlance, this would look like v0f220w0A50,1.0,100,0.5,250,0 to specify a sine wave at 220Hz with this envelope.

When using amy.py, use the string form of the breakpoint: amy.send(osc=0, bp0='50,1.0,100,0.5,250,0').

Every note on (specified by setting vel / l to anything > 0) will trigger this envelope, and setting velocity to 0 will trigger the note off / release section.

You can set a completely separate envelope using the second envelope generator, for example, to change pitch and amplitude at different rates.

As with ControlCoefficients, missing values in the comma-separated parameter strings mean to leave the existing value unchanged. However, unlike ControlCoefficients, it’s important to explicitly indicate every value you want to leave unchanged, since the number of parameters provided determines the number of breakpoints in the set. So in the following sequence:

amy.send(osc=0, bp0='0,1,1000,0.1,200,0')
amy.send(osc=0, bp0=',,,0.9,,')

.. we end up with the same effect as bp0='0,1,1000,0.9,200,0. However, if we do:

amy.send(osc=0, bp0='0,1,1000,0.1,200,0')
amy.send(osc=0, bp0=',,,0.9')  # No trailing commas.

.. we effectively end up with bp0='0,1,1000,0.9, i.e. the 4 elements in the second bp0 string change the first breakpoint set to have only 2 breakpoints, meaning a constant amplitude during note-on, then a final slow release to 0.9 – not at all like the first form, and likely not what we wanted.

Audio input and effects

By setting wave to AUDIO_IN0 or AUDIO_IN1, you can have either channel of a stereo input act as an AMY oscillator. You can use this oscillator like you would any other in AMY, apply global effects to it, add filters, change amplitude, etc.

amy.send(osc=0, wave=amy.AUDIO_IN0, vel=1)
amy.echo(1, 250, 250, 0.5, 0.5)

If you are building your own audio system around AMY you will want to fill in the buffer amy_in_block before rendering. Our included miniaudio-based system does this for you. See amychip for a demo of this in hardware.

FM & ALGO type

Try default DX7 patches, from 128 to 256:

amy.send(synth=0, num_voices=1, patch=128)  # Set up a voice.
amy.send(synth=0, note=50, vel=1)  # Play a note on the voice.

The patch lets you set which preset is used (0 to 127 are the Juno 106 analog synth presets, and 128 to 255 are the DX7 FM presets). But let’s make the classic FM bell tone ourselves, without a patch. We’ll just be using two operators (two sine waves), one modulating the other.

DX7 Algorithms

When building your own algorithm sets, assign a separate oscillator as wave=ALGO, but the source oscillators as SINE. The algorithm #s are borrowed from the DX7. You don’t have to use all 6 operators. Note that the algo_source parameter counts backwards from operator 6. When building operators, they can have their frequencies specified directly with freq or as a ratio of the root ALGO oscillator via ratio.

Please see our interactive AMY tutorial for more on setting up ALGO tones

Build-your-own Partials

You can also explicitly control partials in “build-your-own partials” mode, accessed via wave=amy.BYO_PARTIALS. This sets up a string of oscs as individual sinusoids, but it’s up to you to control the details of each partial via its parameters, envelopes, etc. You just have to say how many partials you want with num_partials. You can then individually set up the amplitude bp0 envelopes of the next num_partials oscs for arbitrary control, subject to the limit of 7 breakpoints plus release for each envelope. For instance, to get an 8-harmonic pluck tone with a 50 ms attack, and harmonic weights and decay times inversely proportional to to the harmonic number:

num_partials = 8
amy.send(osc=0, wave=amy.BYO_PARTIALS, num_partials=num_partials)
for i in range(1, num_partials + 1):
    # Set up each partial as the corresponding harmonic of 440.0
    # with an amplitude of 1/N, 50ms attack, and a decay of 1 sec / N.
    amy.send(osc=i, wave=amy.PARTIAL, freq=440.0 * i,
             bp0='50,%.2f,%d,0,0,0' % ((1.0 / i), 1000 // i))
amy.send(osc=0, note=60, vel=1)

You can add a filter (or an envelope etc.) to the sum of all the PARTIAL oscs by configuring it on the parent BYO_PARTIALS osc:

amy.send(osc=0, filter=amy.FILTER_HPF, resonance=4, filter_freq={'const': 200, 'eg1': 4}, bp1='0,0,1000,1,0,0')
amy.send(osc=0, note=60, vel=1)
# etc.

Note that the default bp0 amplitude envelope of the BYO_PARTIALS osc is a gate, so if you want to have a nonzero release on your partials, you’ll need to add a slower release to the BYO_PARTIALS osc to avoid it cutting them off.

Interpolated partials

Please see our piano voice documentation for more on the INTERP_PARTIALS type.

PCM and Sampler

AMY comes with a bank of drum-like PCM samples baked in, as they are normally hard to render with additive, subtractive or FM synthesis. Use the type PCM with a preset number to play them; their native pitch is used if you don’t give a frequency or note parameter. The default build bakes in an 11-sample TR-808 set (presets 0-10). Builds with the Gamma9001 banks enabled (Tulip, AMYboard, AMY on the web, the CPython amy module) instead bake the full 19-sample TR-808 bank as presets 0-18 and add 136 more samples at presets 256-391: TR-909, Linn 9000, Univox MR-12, Tokyo Synthetics, the 80s Power Kit, and a large acoustic percussion bank. You can update the baked-in PCM sample bank using amy/headers.py.

Drum kits

On Gamma9001 devices, patches 384-390 are ready-made General MIDI drum kits: load one on a synth and GM note numbers (35/36 kick, 38 snare, 42 closed hat, 46 open hat, 49 crash, …) play the right sound.

patch MIDI PC (bank MSB 3) kit
384 0 TR-808 (works even without the sample banks mounted)
385 1 TR-909
386 2 Linn 9000
387 3 Univox Micro Rythmer 12
388 4 Tokyo Synthetics
389 5 80s Power Kit (gated reverb)
390 6 Percussion (hand drums / latin)

Switch kits from code with amy.send(synth=10, patch=38x), or over MIDI with a bank select MSB of 3 (CC0=3) followed by a program change 0-6 on the drum channel. A synth already sitting on a kit patch stays in the kit bank, so a bare program change also switches kits. Channel 10 boots as the TR-808 kit when default synths are on; you can run a second kit polytimbrally on another channel, e.g. amy.send(synth=11, patch=390). Set a kit channel’s overall level with a constant amp on the synth, e.g. amy.send(synth=10, amp=0.5) — the kits keep their per-drum gains in each note mapping’s velocity scale, so the level persists across hits, just like on the melodic patches.

amy.send(osc=0, wave=amy.PCM, vel=1, preset=10) # cowbell
amy.send(osc=0, wave=amy.PCM, vel=1, preset=10, note=70) # higher cowbell!

You can turn on sample looping, helpful for instruments, using mode:

amy.reset()
amy.load_sample('sounds/partial_sources/VI ISUMP2A.wav', preset=99)  # wave file with looping
amy.send(wave=amy.PCM, preset=99, vel=1) # plays through, no looping
amy.send(wave=amy.PCM, preset=99, vel=1, mode=amy.PCM_LOOP) # loops until note off
amy.send(vel=0) # note off
# Continue looping even after note off, but ADSR will apply a release
amy.send(wave=amy.PCM, preset=99, vel=1, mode=amy.PCM_LOOP_FOREVER, eg0='0,1,1000,0')
amy.send(vel=0) # note off

Looping needs an in-memory sample. Presets loaded with disk_sample stream from the file through a small buffer instead of sitting in memory, so there is nothing to loop back into and the loop marks can’t be honored.

AMY therefore refuses to enter that configuration rather than accepting it and quietly not looping. Both halves are checked as they are set — when you change mode, and when you change preset — and the command that would create the impossible pair is dropped with a warning naming the file:

amy: osc 0 preset 1024 streams from drums/kick.wav, which cannot loop;
     ignoring mode=2. Use load_sample() to loop.

The mode is the half dropped when you set both at once, so the sample still plays (once, honoring note-off) rather than leaving you a loop mode pointing at nothing. Setting a streamed preset on an oscillator that is already in a loop mode drops the preset instead, and says so. Load the sample with load_sample if you need it to loop.

Sampler (aka Memory PCM)

You can also load your own samples into AMY memory at runtime by sending PCM data over the wire protocol. Use load_sample in amy.py as an example:

amy.load_sample("G1.wav", preset=3)
amy.send(osc=0, wave=amy.PCM, preset=3, vel=1) # plays the sample

You can use any preset number. If it overlaps with an existing PCM baked in number, it will play the memory sample instead of the baked in sample until you unload_sample the preset.

If the WAV file has sampler metadata like loop points or base MIDI note, we use that in AMY. You can set it directly as well using loopstart, loopend, channels, midinote or length in the load_sample call. To unload a sample:

amy.unload_sample(3) # unloads the RAM for preset 3

Under the hood, if AMY receives a load_sample message (with preset number and nonzero length), it will then pause all other message parsing until it has received length amount of base64 encoded bytes over the wire protocol. Each individual message must be base64 encoded. Since AMY’s maximum message length is 255 bytes, there is logic in load_sample in amy.py to split the sample data into 188 byte chunks, which generates 252 bytes of base64 text. Please see amy.load_sample if you wish to load samples on other platforms.

WAV file playback

AMY support playing WAV files directly with pitching (but not looping!) if your host of MCU has file support. You can use this when the WAV files are bigger than available memory. We provide file reading hooks for POSIX platforms (Mac, Linux) and see Hooks to build your own fopen, fread etc on other platforms like Arduino or Micropython. You can set an oscillator to play a channel of the file with disk_sample, e.g.

amy.disk_sample("G1.wav", preset=1024, midinote=31)
amy.send(osc=0, wave=amy.PCM_LEFT, preset=1024, pan=0, note=60, vel=1) # plays sample from disk

Note that you can only play one instance of the file per preset. (We keep one file handle open per disk_sample preset.) If you want to play multiple copies of a WAV file at once (for instance, a polyphonic sampler), you should make multiple presets:

amy.disk_sample("G1.wav", preset=1024, midinote=31)
amy.disk_sample("G1.wav", preset=1025, midinote=31)
amy.disk_sample("G1.wav", preset=1026, midinote=31)
amy.send(osc=0, wave=amy.PCM_LEFT, preset=1024, pan=0, note=60, vel=1) # plays sample from disk
amy.send(osc=0, wave=amy.PCM_LEFT, preset=1025, pan=0, note=72, vel=1)

Channels

We support loading 1 or 2 channel WAV for load_sample and disk_sample. For disk_sample, channels are decoded from the WAV file metadata on disk. For load_sample, you should set the channels you’re sending over.

Each oscillator in AMY is mono, but you can hint it which channel of PCM to play back with wave=PCM_LEFT or PCM_RIGHT. PCM or PCM_MIX will average each channel if it was a two channel source. To play back stereo, set up two channels and use AMY’s pan:

amy.disk_sample("G1.wav", preset=1024, midinote=31)
amy.disk_sample("G1.wav", preset=1025, midinote=31)
amy.send(osc=0, wave=amy.PCM_LEFT, preset=1024, pan=0, note=60, vel=1)
amy.send(osc=1, wave=amy.PCM_RIGHT, preset=1025, pan=1, note=60, vel=1)

Sampling

AMY can also sample directly into a PCM memory buffer. We support two stereo sampling sources: source=amy.SAMPLE_FROM_OUTPUT is the final AMY output and source=amy.SAMPLE_FROM_AUDIO_IN is just AUDIO_IN0 and AUDIO_IN1. To start sampling to a PCM preset, use start_sample:

amy.start_sample(preset=1024, source=amy.SAMPLE_FROM_AUDIO_IN, max_frames=44100)  # sample for one second
amy.stop_sample() # stop all sampling, not needed if using max_frames
amy.start_sample(preset=1024, source=amy.SAMPLE_FROM_OUTPUT, max_frames=11025, midinote=60) # set base midi note, looping, too
amy.send(osc=0, wave=amy.PCM_LEFT, preset=1024, pan=0, note=72, vel=1) # play back AUDIO_IN sample an octave higher
amy.send(osc=1, wave=amy.PCM_RIGHT, preset=1024, pan=1, note=72, vel=1)
This site is open source. Improve this page.
